Bicuspid aortic valve interventions in Texas—2009–2019

Introduction

The first description of bicuspid aortic valve (BAV) is attributed to Leonardo da Vinci who sketched the variant more than 400 years ago (1). BAV is a common congenital heart defect with a prevalence of 0.5–2% in adults (2). BAV can present within a wide spectrum, from newborn critical aortic stenosis, to asymptomatic which are incidentally identified to significant aortopathy, aneurysm and even dissection and rupture (3). Many BAV patients will require intervention for aortic valve stenosis, insufficiency, a combination of the two, and/or aortic dilation. In a cohort of adult BAV patients, 22% required aortic or aortic valve intervention (AVI) during a mean follow-up of 9 years (4).

Choice of intervention approach can be challenging and is influenced by myriad of things, including: underlying aortic valve morphology, patient age, patient wishes and surgical expertise. Aortic valve replacement with mechanical or biologic valve has been the standard for many years, with aortic valve repair and valve sparing procedures become more and more frequent (though still the minority) (5).

Replacement with a mechanical prosthesis, while more durable than biologic prostheses, results in rates of reoperation ranging from 0.5–1% per patient year and carries a mortality rate of approximately 1% per year (5-7). Mechanical replacements also require lifelong anticoagulation which impacts patient quality of life and presents an increased risk of hemorrhagic complications (8-11). Biologic protheses are faced with reduced durability (12). Other choices for intervention include the Ross procedure (13), aortic valve repair (5), and transcatheter aortic valve replacement (TAVR) (14).

Given the multitude of options for intervention, this study seeks to evaluate the trends in intervention types, patient characteristics, and outcomes from 2009 through 2019 in the state of Texas. We present the following article in accordance with the STROBE reporting checklist (available at https://asj.amegroups.com/article/view/10.21037/asj-22-17/rc).

Methods

Data source

Data was obtained from the Texas Inpatient Discharge Dataset (TIDD) from 2009–2019 (15). The TIDD is an administrative database that captures most discharges in the state of Texas with exception of hospitals located in a county with a population less than 35,000, or those located in a county with a population more than 35,000 and with fewer than 100 licensed hospital beds and not located in an area that is delineated as an urbanized area by the United States Bureau of the Census. These data are collected and maintained by the Texas Department of State Health Services, Center for Health Statistics. Data are deidentified when it is submitted to the dataset from the hospitals. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was reviewed by institutional review board of the University of Texas at Austin Dell Medical School (No. 2020-01-0052) and was deemed not human subjects research as the study consisted of existing, deidentified data thus individual consent for this analysis was waived.

Study population

The TIDD provides an admitting diagnosis, a principal diagnosis, up to 24 other diagnoses, a principal procedure and up to 24 other procedures for each hospitalization record. From 2009 through the third quarter of 2015, diagnoses and procedures were coded using the standard International Classification of Diseases, 9th edition (ICD-9). Records from the 4th quarter of 2015–2019 were coded using the 10th edition (ICD-10).

Inclusion criteria includes: discharges of patients ≥18 years of age at discharge and diagnosis of BAV, and AVI during the hospitalization. BAV discharges were identified as discharges with an ICD-9 code of 746.4 or ICD-10 code of Q23.1 listed. AVI were categorized into repair, Ross procedure, TAVR, and surgical aortic valve replacement (SAVR). AVI were identified by ICD-9 or ICD-10 procedure codes consistent with the intervention categories (Figure S1) .

We excluded from analysis: discharges from long term care, mental and behavior health facilities, substance abuse centers, and unknown center type, discharges of patients <18 years of age, trauma admissions, discharges with missing information on the type of admission, sex, age, race, ethnicity, length of stay (LOS), discharge status, admitting diagnosis, or principle diagnosis, and interim entries. Additionally, discharges with an ICD-9/10 diagnosis code consistent with thoracic or thoracoabdominal aortic dissection or rupture were excluded as the acute nature of these interventions were seen as a unique population which should not be compared with interventions outside of dissection or rupture.

Study outcomes

The primary aim of the study was to assess the trends in BAV interventions over the study period, evaluate patient characteristics between AVI and evaluate outcomes of the different AVI. The TIDD categorizes age into 16 groups. These were further collated into, 18–44, 45–64, and 65+ years. Insurance status was grouped into private insurance, Medicare/Medicaid, uninsured, other, and unknown. Other patient characteristics were identified utilizing ICD-9/10 diagnosis codes listed in Figure S1.

Presence of additional congenital heart disease (CHD) diagnoses was identified as discharges of patients with an ICD-9/10 diagnosis of CHD listed which could be categorized by the American Heart Association/American College of Cardiology severity scale (Figure S1) (16). Discharges of patients with an isolated Atrial Septal Defect (ICD-9: 745.5, ICD-10: Q21.1) were not counted as CHD as isolated Atrial Septal Defect diagnosis codes have been shown to be erroneous more than 75% of the time in administrative datasets (17).

Outcomes included in-hospital mortality, LOS, requirements for a temporary pacemaker, permanent pacemaker, temporary mechanical circulatory support, extracorporeal membrane oxygenation (ECMO), invasive ventilatory support >96 hours, and acute renal failure. Other than mortality and LOS, outcomes were identified by ICD-9/10 diagnosis and procedure codes listed in Figure S1.

Statistical analysis

Descriptive statistics were reported for demographics, patient characteristics, and outcomes. LOS is reported in median (interquartile range) days. All other variables are presented as proportions. Chi-square and Fisher’s exact tests were utilized to analyze discrete variables. The Kruskal Wallis test was utilized to analyze LOS. Multivariable linear and logistic regression analysis was performed to compare AVI type and outcomes. Statistical analyses were performed using R and RStudio (18). All statistical tests were 2-tailed and a P value <0.05 was considered significant.

Results

Overall AVIs in BAV

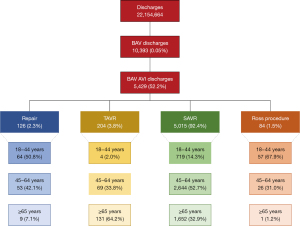

A total of 22,154,664 eligible discharges were identified. Of those, 10,393 (0.05%) were discharges of patients with BAV. Of the BAV discharges, 5,429 (52.2%) discharges underwent an AVI during the hospitalization. For the BAV with AVI discharges, 1,479 (27.2%) were female, 4,434 (81.7%) White, 837 (15.4%) Hispanic, 4,211 (77.6%) had private insurance and 677 (12.5%) had Medicare/Medicaid. The age distribution included 844 (15.5%) 18–44 years, 2,792 (51.4%) 45–64 years and 1,793 (33.0%) 65 years and older (Table 1). The AVI categories included 126 (2.3%) aortic valve repair, 204 (3.8%) TAVR, 5,015 (92.4%) SAVR and 84 (1.5%) Ross procedures (Figure 1). BAV AVI was performed at 142 centers with 97 (68.3%) only performing SAVR while 25 (17.6%) performed repairs, 30 (21.1%) performed TAVRs and 18 (12.7%) performed the Ross procedure. Seven (4.9%) centers performed all BAV AVI types during the study period. The median number of cases per center was 7 (IQR, 3–23).

Figure 1 Aortic valve intervention types by age. BAV, bicuspid aortic valve; AVI, aortic valve intervention; TAVR, transcatheter aortic valve replacement; SAVR, surgical aortic valve replacement.

Trends in BAV intervention

The number of BAV AVI discharges grew from 378 in 2009 to 677 in 2019, representing a 79% total increase and a 7.2% annual increase. The first TAVR discharges were in 2012 with 4 and increased to 85 in 2019, representing a 2,025% total increase and a 253% annual increase (Figure 2). SAVR represented 94.4% of BAV AVI in 2009, peaked at 97.9% in 2013 then declined to 83.0% in 2019. This was accompanied by an increase in proportion of TAVR from 0% in 2009 to 1.3% in 2015 and 12.6% in 2019. The proportion of Ross procedures and aortic valve repairs remained stable representing 1–4% of all interventions individually (Figure 2).

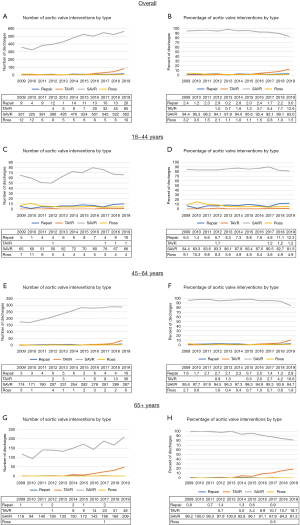

Figure 2 Number and percentage of aortic valve intervention types over time, overall and by ages. (A,B) Overall population; (C,D) 18–44 years of age; (E,F) 45–64 years of age; (G,H) 65 years of age and older. TAVR, transcatheter aortic valve replacement; SAVR, surgical aortic valve replacement.

Discharge demographics by AVI type

Comparing different AVI modalities, TAVR discharges were more likely to be female (39.2%, P<0.001), repair and Ross procedure were younger (P<0.001), and TAVR discharges were least likely to have private insurance (58.8%) and most likely to have Medicare/Medicaid (32.4%, P<0.001). No differences were found in racial or ethnic makeups (Table 2).

Clinical characteristic by AVI type

Ross procedure discharges were most likely to have a concomitant CHD diagnosis (19.0%, P<0.001). Aortic valve repair discharges were more likely to have a concomitant diagnosis of thoracic aortic dilation (73.4%, P<0.001) and a diagnosis of Turner Syndrome (2.4%, P=0.009). TAVR had the highest proportion of concomitant hypertension (87.3%, P<0.001), lipid disorders (68.6%, P<0.001), and Diabetes (28.9%, P=0.011). SAVR had the highest rate of smoking (19.2%, P<0.001) (Table 3).

Outcomes by AVI type

Overall the median LOS was 7 [5–9] days. There were 88(1.6%) in-hospital mortalities. There was a significant difference in LOS between the intervention types with SAVR having the longest at 7 [5–9] days and TAVR having the shortest at 2 [1–5] days (P<0.001). In-hospital mortality ranged from 1 (0.8%) in the repair group to 5 (2.5%) in the TAVR group; however, this did not reach statistical significance (P=0.517). TAVR had the highest incidence of permanent pacing (8.8%, P=0.006) and temporary pacing (17.2%, P<0.001) (Table 4).

AVI in young adults (18–44 years)

A total of 844 AVI discharges occurred in patients 18–44 years of age, accounting for 15.5% of all BAV AVI discharges. In this group, 719 (85.2%) underwent SAVR, 64 (7.6%) underwent repair, 57 (6.8%) underwent a Ross procedure and 4 (0.5%) underwent TAVR. Given the small number of TAVR interventions, these were not included in the following analysis. No demographic differences were seen between the three intervention groups. Ross procedures were more likely to have a concomitant CHD diagnosis (26.3%, P=0.004). The repair group was more likely to have aortic dilation (57.8%, P<0.001). SAVR had the longest LOS at 7 [5–10] days (P<0.001). There were 12 (1.4%) in-hospital mortalities with 11 (1.5%) in the SAVR group, 1 (1.8%) in the Ross procedure group and 0 in the repair group. This did not reach statistical significance (P=0.682). SAVR was more likely to require permanent pacemaker placement (6.4%, P=0.030) (Table 5).

Multivariable model of outcomes

After adjusting for demographic and clinical characteristics, type of AVI continued to have no association with mortality, requirement for ventilatory support >96 hours and temporary pacing. Compared to repair, TAVR had a 53.2% (95% CI: 47.2–58.5%, P<0.001) reduced LOS while SAVR had a 24.6% (95% CI: 12.4–35.8%, P<0.001) increased LOS. Further, the Ross procedure had an increased adjusted odds of acute renal failure (adjusted OR: 2.80, 95% CI: 1.23–6.54, P=0.015) and TAVR had an increased adjusted odds of permanent pacemaker placement (adjusted OR: 10.1, 95% CI: 1.99–183.5, P=0.027) compared to repair (Table 6).

Discussion

In this review of a statewide administrative dataset over 11 years, 0.05% of the discharges were of patients with BAV, this correlates favorably with the overall reported prevalence of BAV in 1% of the general population. There was a steady increase in the number of AVI in BAV discharges of adult patients. Approximately half of all discharges with a diagnosis of BAV involved an AVI. SAVR accounted for the vast majority of these interventions across all ages. The first TAVR intervention in a BAV discharge in this dataset occurred in 2012 with fewer than 10 performed annually until 2016 with rapid increase in utilization thereafter. In 2019, TAVR accounted for 12.6% of all AVI in BAV discharges and 18.7% of AVI in the ≥65 years age group. The Ross procedure and aortic valve repair were almost exclusively performed in younger patients with >90% performed in those <65 years and >50% performed in those 18–44 years old.

TAVR had a significantly shorter LOS after adjusting for patient characteristics, representing the less invasive nature of the intervention. Contrarily, SAVR had a significantly longer LOS after adjusting for patient characteristics. As the invasiveness, on average, of SAVR would not be expected to be greater than repair or the Ross procedure, this increased LOS may represent patient complexity not captured and accounted for in this dataset. However, an intrinsic difference in recovery rates as a result of having a native tissue valve compared to a bioprosthetic or mechanical valve cannot be excluded.

A total of 88 (1.6%) in-hospital mortalities were identified, with 2.5% in TAVR, 2.4% in Ross procedures, 1.6% in SAVR and 0.8% in AV Repairs. However, no statistical differences in mortality rates was found between AVI type in unadjusted analysis and when adjusted for patient characteristics. This in-hospital mortality rate is favorable compared to previous report of 2.7% in analysis of real world data comparing TAVR to SAVR (19).

After adjustment for patient characteristics, the Ross procedure was associated with an increased odd of acute renal failure with a prevalence of 19% of BAV Ross procedure discharges. This increased risk is consistent with previous reports of increased acute renal failure post Ross procedure compared to Mechanical SAVR (6). Acute renal failure after cardiac surgery is a well described risk for late mortality (20). Given the increased complexity of the Ross, the resultant increased operative and cardiopulmonary bypass time may contribute to this increased risk.

An increased risk of permanent pacemaker placement was found in the TAVR intervention with a rate of 9% of BAV TAVR discharges. Increased rates of permanent pacing requirements have previously been reported however at a an even higher rate than identified in this study (21). The current analysis likely under-reports the true rates of permanent pacing as many pacemaker implantations may occur after the initial discharge from TAVR or not properly captured in this administrative dataset. It should be noted that these data represent many years of early utilization of TAVR in the BAV population. Early uses of TAVR likely involved higher risk patients which potentially impacts frequency of outcomes. As indications for TAVR continue to expand and volumes and experience with the procedure increase real-world outcomes will continue to need to be reassessed.

In an important sub-group analysis of the youngest (18–44 years) age group, SAVR was found to have the longest LOS, similar to the overall group. There were 11 (1.5%) in-hospital mortalities in the SAVR group, 1 (1.8%) in the Ross group and 0 in the repair group. This represents a low but not insignificant risk of in-hospital mortality in younger adults with BAV undergoing AVI. With intervention occurring at a young age, complications which result in chronic conditions take on a greater importance. In this young adult group, SAVR was associated with a high incidence of need for permanent pacing at 6.4% and significantly higher than Ross procedure (1.8%) and repair (0%). Requirement for permanent pacing in young adults has a significant impact on survival with only 70% survival at 20 years after initial implantation in a cohort of young adults (22).

Limitations

This is a retrospective analysis of an administrative dataset with the usual limitations including the lack of complete clinical data for individual patients. There is no information known about each individual’s surgical history, particularly previous cardiac interventions and valve morphology and thus attributed interventional risk. Further, as the unit of analysis is a hospital discharge without any unique patient identifiers, there is a possibility that a single patient may be represented multiple times if they underwent repeated interventions during the study period.

While the ICD-9/10 code of Congenital Aortic Valve Insufficiency is the standard code utilized for BAV, it may also capture patients who do indeed have congenital aortic valve insufficiency in the setting of a tricuspid aortic valve. Further, there is the potential that BAV discharges were not identified if they were coded as Congenital Aortic Valve Stenosis.

Given the nature of the dataset, indication for intervention and if patients were offered and/or were eligible for different intervention types cannot be assessed. This potentially presents a bias towards all patients evaluated not being eligible for all procedures evaluated. However, the multivariable analysis of outcomes attempts to account for potential patient specific differences between the procedure types.

The lack of temporality in diagnostic codes inhibited the ability to assess important outcomes including myocardial infarction and neurological complications. In this dataset, presence of a diagnosis code consistent with either of these conditions may represent a historical event or an acute event thus these were not assessed in this analysis but represent important outcomes to be evaluated in future research.

Conclusions

Choice of AVI in patients with BAV requires evaluation of many factors. As the number of interventions continues to increase year over year, and with the introduction of new technologies, it is imperative to continue developing an understanding of the short- and long-term complications and outcomes of each intervention. The data in this study reveal significant differences in short-term outcomes which have the potential to impact long-term survival and quality of life. This information must then be used to further shared decision making with patients and families to determine the best path forward for each individual patient. Continued research on short- and long-term outcomes is necessary as experience grows with interventions such as TAVR and as new devices and interventions are introduced to ensure patients are provided with the most updated and accurate information when discussing treatment pathways.

Acknowledgments

Meeting Presentation: European Association for Cardio-Thoracic Surgery, Barcelona, Spain (Virtual), October 10, 2020.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the STROBE reporting checklist. Available at https://asj.amegroups.com/article/view/10.21037/asj-22-17/rc

Data Sharing Statement: Available at https://asj.amegroups.com/article/view/10.21037/asj-22-17/dss

Peer Review File: Available at https://asj.amegroups.com/article/view/10.21037/asj-22-17/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://asj.amegroups.com/article/view/10.21037/asj-22-17/coif). The authors have no conflicts of interest to declare

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). The study was reviewed by institutional review board of the University of Texas at Austin Dell Medical School (No. 2020-01-0052) and was deemed not human subjects research as the study consisted of existing, deidentified data thus individual consent for this analysis was waived.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Mills P, Leech G, Davies M, et al. The natural history of a non-stenotic bicuspid aortic valve. Br Heart J 1978;40:951-7. [Crossref] [PubMed]
2. Braverman AC, Güven H, Beardslee MA, et al. The bicuspid aortic valve. Curr Probl Cardiol 2005;30:470-522. [Crossref] [PubMed]
3. Masri A, Svensson LG, Griffin BP, et al. Contemporary natural history of bicuspid aortic valve disease: a systematic review. Heart 2017;103:1323-30. [Crossref] [PubMed]
4. Tzemos N, Therrien J, Yip J, et al. Outcomes in adults with bicuspid aortic valves. JAMA 2008;300:1317-25. [Crossref] [PubMed]
5. Ehrlich T, de Kerchove L, Vojacek J, et al. State-of-the art bicuspid aortic valve repair in 2020. Prog Cardiovasc Dis 2020;63:457-64. [Crossref] [PubMed]
6. Bouhout I, Stevens LM, Mazine A, et al. Long-term outcomes after elective isolated mechanical aortic valve replacement in young adults. J Thorac Cardiovasc Surg 2014;148:1341-1346.e1. [Crossref] [PubMed]
7. Kvidal P, Bergström R, Hörte LG, et al. Observed and relative survival after aortic valve replacement. J Am Coll Cardiol 2000;35:747-56. [Crossref] [PubMed]
8. Aicher D, Holz A, Feldner S, et al. Quality of life after aortic valve surgery: replacement versus reconstruction. J Thorac Cardiovasc Surg 2011;142:e19-24. [Crossref] [PubMed]
9. Zacek P, Holubec T, Vobornik M, et al. Quality of life after aortic valve repair is similar to Ross patients and superior to mechanical valve replacement: a cross-sectional study. BMC Cardiovasc Disord 2016;16:63. [Crossref] [PubMed]
10. Hammermeister K, Sethi GK, Henderson WG, et al. Outcomes 15 years after valve replacement with a mechanical versus a bioprosthetic valve: final report of the Veterans Affairs randomized trial. J Am Coll Cardiol 2000;36:1152-8. [Crossref] [PubMed]
11. Puskas J, Gerdisch M, Nichols D, et al. Reduced anticoagulation after mechanical aortic valve replacement: interim results from the prospective randomized on-X valve anticoagulation clinical trial randomized Food and Drug Administration investigational device exemption trial. J Thorac Cardiovasc Surg 2014;147:1202-1210; discussion 1210-1. [Crossref] [PubMed]
12. Goldstone AB, Chiu P, Baiocchi M, et al. Mechanical or Biologic Prostheses for Aortic-Valve and Mitral-Valve Replacement. N Engl J Med 2017;377:1847-57. [Crossref] [PubMed]
13. Poh CL, Buratto E, Larobina M, et al. The Ross procedure in adults presenting with bicuspid aortic valve and pure aortic regurgitation: 85% freedom from reoperation at 20 years. Eur J Cardiothorac Surg 2018;54:420-6. [Crossref] [PubMed]
14. Yoon SH, Bleiziffer S, De Backer O, et al. Outcomes in Transcatheter Aortic Valve Replacement for Bicuspid Versus Tricuspid Aortic Valve Stenosis. J Am Coll Cardiol 2017;69:2579-89. [Crossref] [PubMed]
15. Texas Hospital Inpatient Discharge Public Use Data File, [1st quarter 2006 through 4th quarter 2019]. Texas Department of State Health Services, Center for Health Statistics, Austin, Texas. [2020].
16. Stout KK, Daniels CJ, Aboulhosn JA, et al. 2018 AHA/ACC Guideline for the Management of Adults With Congenital Heart Disease: A Report of the American College of Cardiology/American Heart Association Task Force on Clinical Practice Guidelines. Circulation 2019;139:e698-e800. Erratum in: Circulation 2019;139:e833-e834. [PubMed]
17. Rodriguez FH 3rd, Ephrem G, Gerardin JF, et al. The 745.5 issue in code-based, adult congenital heart disease population studies: Relevance to current and future ICD-9-CM and ICD-10-CM studies. Congenit Heart Dis 2018;13:59-64. [Crossref] [PubMed]
18. R Core Team (2019). R: A language and environment for statistical computing. R Foundation for Statistical Computing, Vienna, Austria. Available online: https://www.R-project.org/
19. Stachon P, Kaier K, Zirlik A, et al. Risk-Adjusted Comparison of In-Hospital Outcomes of Transcatheter and Surgical Aortic Valve Replacement. J Am Heart Assoc 2019;8:e011504. [Crossref] [PubMed]
20. Matsuura R, Iwagami M, Moriya H, et al. The Clinical Course of Acute Kidney Disease after Cardiac Surgery: A Retrospective Observational Study. Sci Rep 2020;10:6490. [Crossref] [PubMed]
21. Sá MPBO, Simonato M, Van den Eynde J, et al. Balloon versus self-expandable transcatheter aortic valve implantation for bicuspid aortic valve stenosis: A meta-analysis of observational studies. Catheter Cardiovasc Interv 2021;98:E746-E757. [Crossref] [PubMed]
22. Mayosi BM, Little F, Millar RN. Long-term survival after permanent pacemaker implantation in young adults: 30 year experience. Pacing Clin Electrophysiol 1999;22:407-12. [Crossref] [PubMed]
